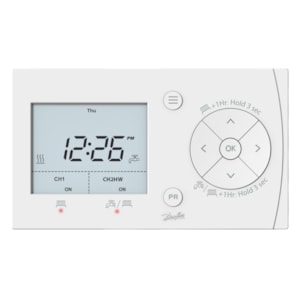

The Danfoss FP720 V2 is a two channel programmer with separate heating and hot water outputs, each working on its own independent time base. At installation you can choose 7-day, 5/2-day or 24-hour operation, and set 1, 2 or 3 on/off periods per day. The hot water channel can be set for either pumped or gravity hot water.
Key Features:
– Two channel programmer with independent heating and hot water time bases
– 7 day, 5/2 day or 24 hour operation, selected at installation
– 1, 2 or 3 on/off periods per day (up to 6 events)
– Heating and hot water, or two heating channel settings
– Channel override: Auto, +1Hr boost (single touch), On and Off
– Large backlit display
– Holiday function and service interval timer
– Automatic daylight saving change
– Factory pre-set programmes

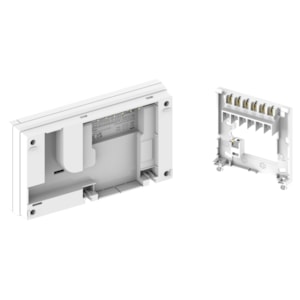

– Fits an industry standard backplate, with multiple cable access points for easier installation
Please check the wiring and terminal layout of your existing programmer before ordering. If you are unsure, please contact us.
We recommend this programmer is fitted by a qualified electrician or Gas Safe Registered Engineer.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Danfoss |
| Part Number | 087N7882 |
| Type | FP720 V2 Two Channel Programmer |
| Function | Digital programmable timeswitch |
| Schedule | 7 day, 5/2 day or 24 hour |
| On/Offs | 1, 2 or 3 per day |
| Override | Auto, +1Hr boost, On, Off |
| Holiday Function | Yes |
| Service Interval Timer | Yes |
| Automatic Daylight Saving | Yes |
| Backlit Display | Yes |
| Backplate | Industry standard |
| Supply Voltage | 230V AC, ±10% |
| Output Relay Rating | 3A resistive, 1A inductive |
| Batteries | 2 x CR1220 coin cell (manganese lithium) |
| Maximum Ambient Temperature | 40°C |
| Height | 90mm |
| Depth | 31mm |
| Weight | 310g |
| Colour | White (RAL 9010) |
| Material | ABS+PC, non-flammable |
| Approvals | CE, UKCA |
| EAN | 5715162419281 |
