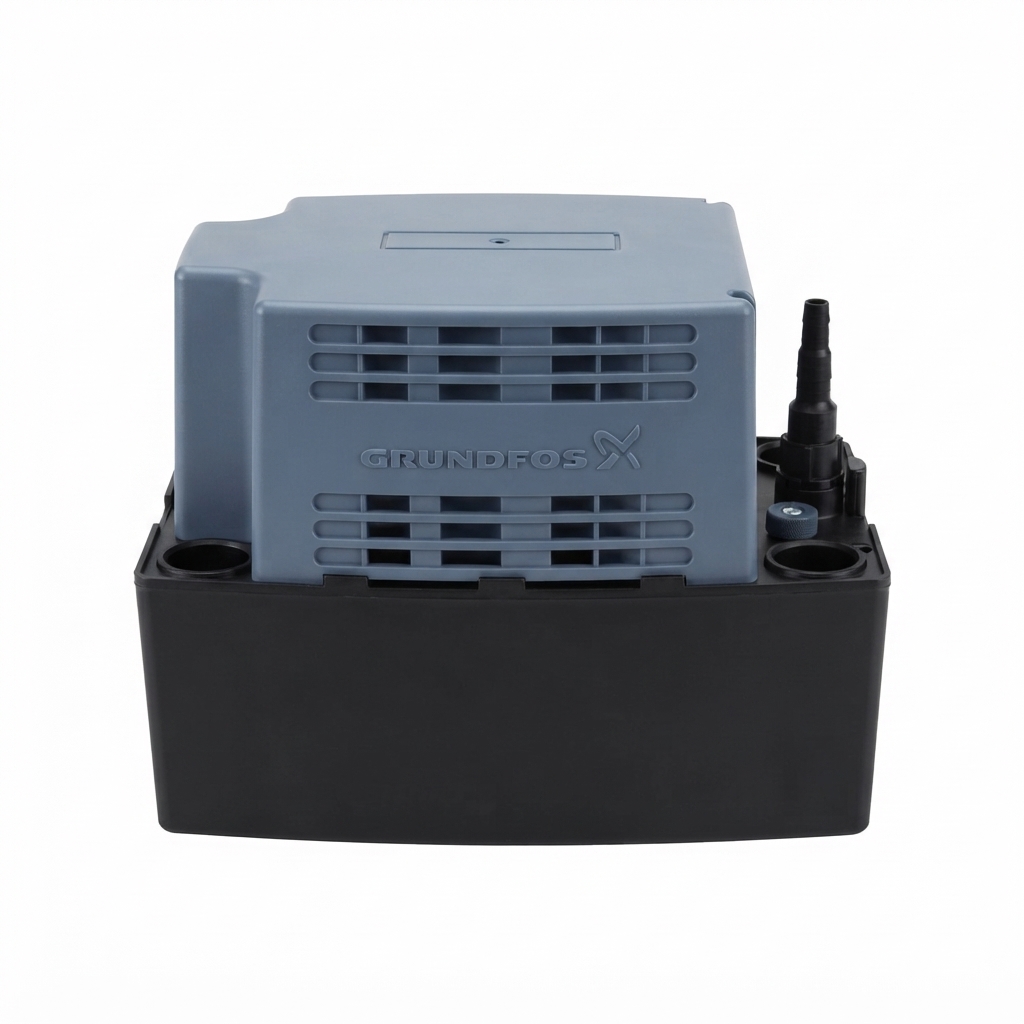

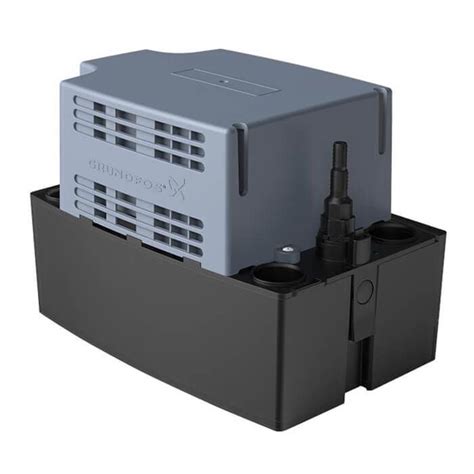

The Grundfos Conlift1 LS (98452219) is a compact, automatic condensate removal pump for condensing boilers, air-conditioning units, refrigeration systems and dehumidifiers. It is the cost-effective entry-level model in the trusted Grundfos Conlift range.
It is used where condensate is collected below drain level, or where it cannot reach a drain by natural fall, for example a boiler in a basement or an AC unit far from a waste pipe. The pump collects the condensate in its tank and automatically pumps it away when the tank fills, so no manual operation is needed.
Key Features
- Fully automatic operation
- Floor standing or wall-hung installation
- Pre-fitted non-return valve with bayonet fitting
- Pump/motor can be rotated 180° on the tank
- Four symmetrical inlets for flexible pipe routing
- Built-in water lock (syphon) stops boiler flue gases escaping through the tank
- High-water float switch with alarm contact (1.7m cable) – can switch off the boiler or trigger an alarm if the water level gets too high
- Pump test button
- Quiet, smooth running
- Upgradeable with an alarm PCB or neutralisation unit
What’s in the Box
- Grundfos Conlift1 LS condensate pump
- 5m drain hose
- Inlet and discharge hose adaptors
Specifications
| Brand | Grundfos |
| Model | Conlift1 LS |
| Product Number | 98452219 |
| Power Supply | 1 x 220–240V, 50Hz |
| Power | 75W |
| Protection Rating | IP20 |
| Maximum Head | 5.5m |
| Maximum Flow Rate | 600 l/h |
| Tank Capacity | 2.65 litres |
| Inlets | 4 inlets |
| Discharge Hose | 8mm / 10mm |
| Max Liquid Temperature | 50°C continuous (up to 90°C for 5 minutes) |
| Minimum pH | 2.7 |
| Dimensions (L x H x W) | 258 x 183 x 165 mm |
| Weight | 3.1 kg |
| Condition | New |
| Warranty | 2 years (manufacturer) |
Note: For very acidic condensate (pH below 2.7), a neutralisation unit should be used. Always follow the boiler manufacturer’s instructions when connecting a pressure relief valve outlet.
